Adjusting Valve Clearance | Complete Guide

When it comes to maintaining your engine is health, one often overlooked but crucial task is adjusting the valve clearance. The adjusting valve clearance is the tiny gap between the engine is valve and the rocker arm, which ensures that the engine operates smoothly. Over time, this gap can change due to wear and tear, leading to performance issues like a rough idle, ticking noise, or even engine damage if left unchecked.

Adjusting the valve clearance ensures that the engine valves open and close at the correct times, which optimizes fuel efficiency, power output, and overall engine longevity. Whether you are a DIY enthusiast or just looking to learn more about your car is maintenance needs, understanding how to adjust valve clearance can help keep your engine in top condition.

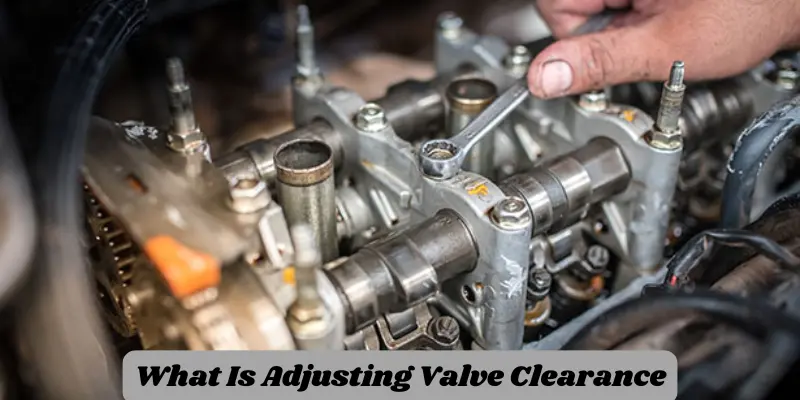

What Is Adjusting Valve Clearance?

Adjusting valve clearance is an important process that helps your car is engine run smoothly. Think of the valves in your engine as tiny doors that open and close to let air and fuel in, and exhaust out. To make sure these doors open and close at the right time, there needs to be a small gap between the valve and another part called the rocker arm.

Over time, this gap can become too big or too small, which can cause the engine to run poorly. If the gap is too small, the valves might stay slightly open, making the engine lose power or even get damaged. If the gap is too large, the engine might make a ticking noise or run roughly.

Adjusting the valve clearance means fixing this gap to make sure everything works perfectly. This is usually done by turning a screw or nut that controls the position of the rocker arm. When the gap is just right, the engine runs smoothly, uses less fuel, and lasts longer.

You May Also Visit It

Copper Zinc Alloys – Step by Step Guide

Cast Iron Melting Temp | Discover Its Industrial Secrets

Is Aluminium Magnetic Material | Types, Uses and Properties

Physical Properties Are Shared by Most Metals

Why is Adjusting Valve Clearance Important?

Adjusting valve clearance is a critical task for maintaining your engine is performance and longevity. Here is why it matters:

1. Improves Engine Performance

• The valves control the flow of air and fuel into the engine and the exhaust out. When the valve clearance is set correctly, the valves open and close at the right times, ensuring the engine runs smoothly and efficiently.
• Incorrect valve clearance can cause poor engine performance, including rough idling, stalling, or reduced power output.

2. Prevents Engine Damage

• If the clearance is too small, the valves may not fully close, which can cause them to burn out or damage other engine parts.
• If the clearance is too large, it can result in excessive wear on the valve components, leading to further engine damage over time.

3. Enhances Fuel Efficiency

• Proper valve clearance helps the engine breathe better by allowing air and fuel to enter and exit efficiently. This means the engine uses fuel more effectively, improving fuel economy.
• If the clearance is off, the engine may struggle to run efficiently, leading to wasted fuel and higher operating costs.

4. Reduces Unwanted Noises

• A ticking or tapping sound from the engine often means the valve clearance is too large. Adjusting it to the correct setting can help eliminate these annoying noises, making the engine run quieter.

5. Extends Engine Lifespan

• Regularly adjusting valve clearance helps to keep engine parts working in harmony, reducing the chances of wear and tear. This contributes to the engine is longevity, preventing costly repairs and ensuring the engine lasts longer.

Adjusting valve clearance is vital for keeping your engine healthy, performing at its best, and saving you money in the long run. Regular maintenance can prevent unnecessary issues and help avoid major engine repairs.

Types of Adjusting Valve Clearance

There are different ways to adjust the valve clearance in an engine, depending on the type of engine you have. Lets look at the main types:

1. Adjusting Valve Clearance with Rocker Arms (Pushrod Engines)

• How it works: In pushrod engines, there are rocker arms that push the valves open and closed. To adjust the valve clearance, you have to turn a screw or nut that is attached to the rocker arm.
• Why it is used: This method is common in older or simpler engine designs, like some car and motorcycle engines. It is easy to do, but it requires careful measuring to make sure the gap is perfect.

2. Adjusting Valve Clearance with Overhead Camshaft (OHC Engines)

• How it works: In engines with an overhead camshaft, the camshaft sits above the valves and uses cams to open and close the valves. The clearance is adjusted by turning a screw or bolt that controls how the camshaft interacts with the valves.
• Why it is used: Overhead cam engines are more common in newer vehicles. The adjustment is a bit more complex than pushrod engines, but it still helps the engine run better.

3. Self-Adjusting or Hydraulic Valve Lifters

• How it works: Some modern engines use special self adjusting lifters that automatically set the correct valve clearance. These lifters use hydraulic pressure to adjust the gap as needed without any manual adjustments.
• Why it is used: This type of system reduces the need for regular valve clearance adjustments. It is used in many newer cars because it is low maintenance and ensures a quiet engine.

The method you use to adjust valve clearance depends on the design of the engine. Some engines are easy to adjust, while others do it automatically, keeping things simple and efficient.

Making Process of Adjusting Valve Clearance

Adjusting valve clearance is a step by step process that ensures the valves in your engine work properly. Here is how it is done in an easy to understand way:

1. Preparation: Getting Ready

• Turn off the engine: Before you start, make sure the engine is cool, because working with a hot engine can be dangerous.
• Remove the parts blocking access: In most cars, you need to remove the valve cover to get to the valves. This might include taking off spark plugs or other parts that get in the way.

2. Find the Right Position for the Valves

• Rotate the engine: You need to make sure the engine is in the right position so you can measure the valve clearance accurately. This is done by rotating the engine using a wrench or crankshaft. This step ensures that each valve is at the right position for adjusting.
• Check the valve positions: There are two types of valve positions: “open” (when the valve is slightly open) and “closed” (when the valve is fully shut). You need to adjust the clearance when the valve is in the “closed” position.

3. Measuring the Valve Clearance

• Use a feeler gauge: This tool looks like a set of thin metal strips. You slide the feeler gauge between the valve and rocker arm to measure the gap (clearance).
• Check the gap: The correct clearance will be listed in the car is manual, and it needs to be just the right size not too big or too small.

4. Adjust the Valve Clearance

• Tighten or loosen the adjuster screw: If the gap is too big or too small, you can change it by tightening or loosening a screw or nut. You will do this by turning the adjuster screw or nut that controls the rocker arm.
• Re-check the clearance: After making the adjustment, use the feeler gauge again to make sure the gap is just right.

5. Put Everything Back Together

• Once all the valves have been adjusted, put the valve cover and any other parts back into place.
• Double-check everything: Before starting the engine again, make sure all tools are removed and everything is tightly secured.

6. Test the Engine

• Start the engine: Once the adjustments are complete, start the engine and listen carefully. A smooth running engine without any ticking or rough noises means the clearance was adjusted properly.

Adjusting valve clearance is like making sure the little doors (valves) in the engine open and close at the right time. When the gap is correct, the engine runs better and lasts longer.

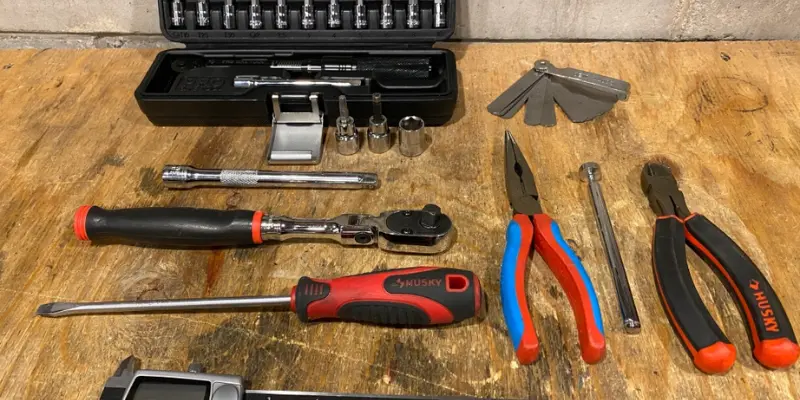

Tools Required for Adjusting Valve Clearance

To adjust the valve clearance in an engine, you will need a few special tools to make sure everything is done properly. Here is a list of the most common tools used in the process:

1. Feeler Gauge

• What it is: A feeler gauge is a tool made of thin metal strips in different sizes. These strips are used to measure the gap between the valve and rocker arm.
• Why it is needed: This tool helps you check if the valve clearance is just right. You pick the right size strip and slide it between the valve and rocker arm to see if the gap is correct.

2. Wrenches or Socket Set

• What it is: A wrench or socket set is used to loosen or tighten the nuts and bolts that hold parts of the engine in place, like the valve cover or adjuster screws.
• Why it is needed: These tools help you adjust the rocker arm or valve clearance by turning screws or bolts to either tighten or loosen them.

3. Screwdriver

• What it is: A simple tool with a handle and a flat or cross shaped tip used for turning screws.
• Why it is needed: Some engines use screws to adjust the valve clearance, and a screwdriver is used to turn these screws.

4. Crankshaft Wrench or Ratchet

• What it is: A tool used to rotate the engine is crankshaft to the correct position for valve clearance adjustment.
• Why it is needed: You need to rotate the engine to a specific position to ensure each valve is in the correct spot for adjusting its clearance.

5. Torque Wrench

• What it is: A wrench that measures how tightly you are tightening bolts and nuts.
• Why it is needed: After making adjustments, a torque wrench helps you tighten the bolts or nuts to the right tightness (called torque), which is important to avoid damaging engine parts.

6. Valve Cover Gasket (Optional)

• What it is: A rubber or silicone gasket that helps seal the valve cover to the engine.
• Why it is needed: If you have to remove the valve cover to access the valves, you might need a new gasket to make sure the cover seals properly when you put it back.

7. Rag or Towel

• What it is: A rag or towel to clean off any dirt or debris that may have built up around the valve area.
• Why it is needed: Cleaning the engine area before adjusting the valves helps you see better and prevents dirt from getting into sensitive engine parts.

These are the basic tools you will need to adjust the valve clearance. With these tools, you can ensure your engine runs smoothly and efficiently. Remember, always follow safety rules and instructions carefully when working on your engine.

You May Also Visit It

What is Ferrous vs Non Ferrous Metals – Complete Guide

What is Titanium Steel – Types, Uses, Properties and Modern Metal

Plasma Cutter How Does It Work – Complete Guide

Is Copper a Metalloid | Understanding the Classification of Elements

Advantages and Disadvantages of Adjusting Valve Clearance

Adjusting valve clearance has some important benefits but also a few challenges. Lets take a look at the advantages and disadvantages of doing this task.

Benefits of Adjusting Valve Clearance

Adjusting valve clearance is important for keeping an engine running smoothly. It helps the engine work better, saves fuel, and prevents damage, making it last longer.

Drawbacks of Adjusting Valve Clearance

Adjusting valve clearance is important for a car is engine, but it can have some drawbacks. It may take time, needs special tools, and could cause engine problems if done wrong.

Adjusting valve clearance is a useful task that helps keep your engine running smoothly, improves performance, and can save money in the long run. However, it takes time, requires special tools, and needs some skill. If you are unsure, it might be better to ask a mechanic for help to make sure the job is done right.

Common FAQs about Adjusting Valve Clearance

Here are some frequently asked questions (FAQs) about adjusting valve clearance, explained in an easy to understand way:

These FAQs should help you understand valve clearance adjustments a little better. If you have more questions, it is always a good idea to consult a professional mechanic for advice or assistance.

Conclusion

Adjusting valve clearance is an important task that helps keep your engine running smoothly and efficiently. By ensuring the right gap between the valves and rocker arms, you can improve engine performance, prevent damage, and extend the life of your vehicle.

While it requires the right tools and knowledge, regular valve clearance adjustments can lead to a quieter, more powerful engine and better fuel efficiency. If you are unsure about how to do it, it is always a good idea to ask a mechanic for help.

Bonus Points on Adjusting Valve Clearance

Here are some bonus points to keep in mind when it comes to adjusting valve clearance:

• Precision is Key: When adjusting valve clearance, it is essential to be precise with the measurements. Even a small mistake can lead to poor engine performance or damage.
• Engine Temperature Matters: It is best to adjust the valve clearance when the engine is cold. This helps ensure that the measurements are accurate and not affected by the heat expansion of engine parts.
• Regular Maintenance: Regularly checking valve clearance as part of your engine is maintenance schedule can save you money on major repairs and extend the life of your engine.
• Know Your Engine: Different engines have different requirements. Some engines use hydraulic lifters that automatically adjust valve clearance, while others might require manual adjustments. Always check the manufacturer is recommendations.
• Professional Help: If you are not confident in doing the job yourself, it is always a good idea to leave it to a professional mechanic. They have the tools and expertise to get the job done correctly.

By keeping these bonus points in mind, you will ensure that your valve clearance is always in top condition, helping your engine perform its best for longer.
